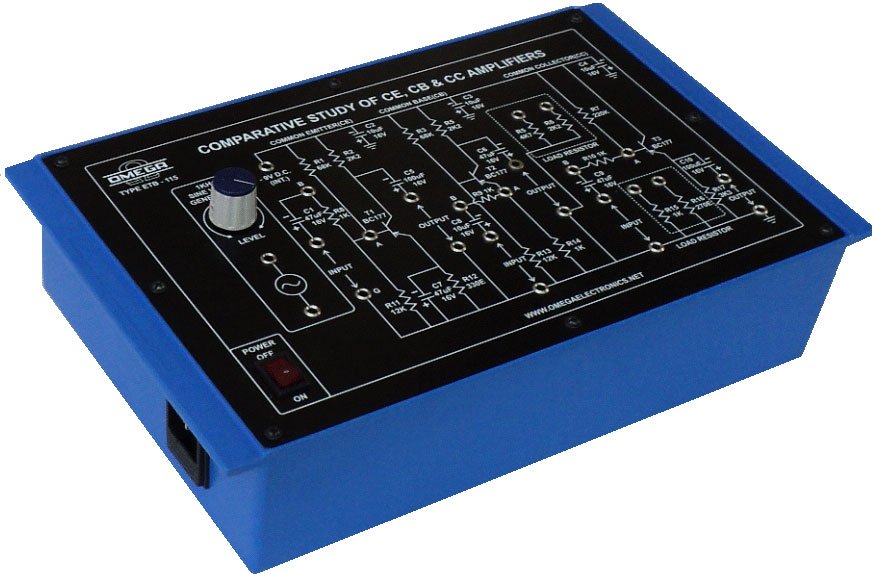

ETB-115
Comparative Study of CE, CB & CC Amplifiers with power supply and oscillator 1KHz
Experimental Training Boards (ETB Series)
Technical Specification
01 Study of Common Emitter (CE) transistor amplifier circuit and evaluation of its input & output resistance, voltage gain, current gain and power gain.
02 Study of Common Base (CB) transistor amplifier circuit and evaluation of its input and output resistance, voltage gain, current gain and power gain.
03 Study of Common Collector (CC) transistor amplifier circuit and evaluation of its input and output resistance, voltage gain, current again and power gain.
04 To design/study a CE amplifier of given gain (mid gain) using voltage divider basis.
