ETB-138

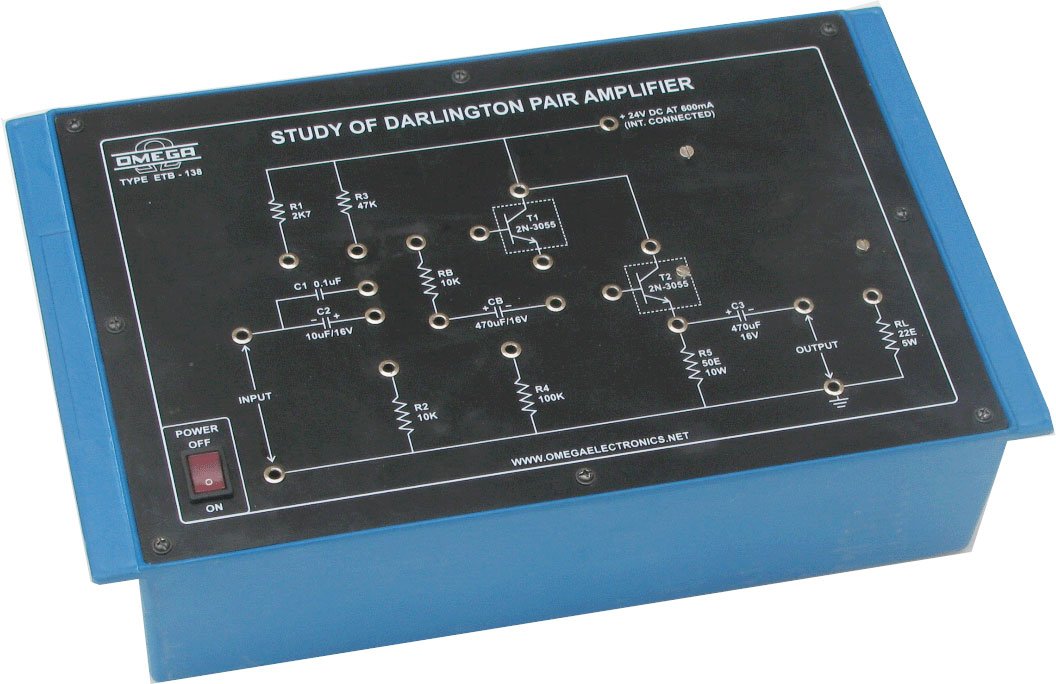

Study of Darlington Pair Amplifier with power supply
Experimental Training Boards (ETB Series)
Technical Specification
01 To experimentally calculate and compare the following circuits :
(i) Emitter Follower Circuit
(ii) Darlington pair Amplifier for the following parameters :
(a) Input Impedance
(b) Output Impedance
(c) Current gain
(d) Voltage gain
02 To understand the technique of Boot-Strapping and experimentally demonstrate its effect on input impedance of Darlington Pair Amplifier.
