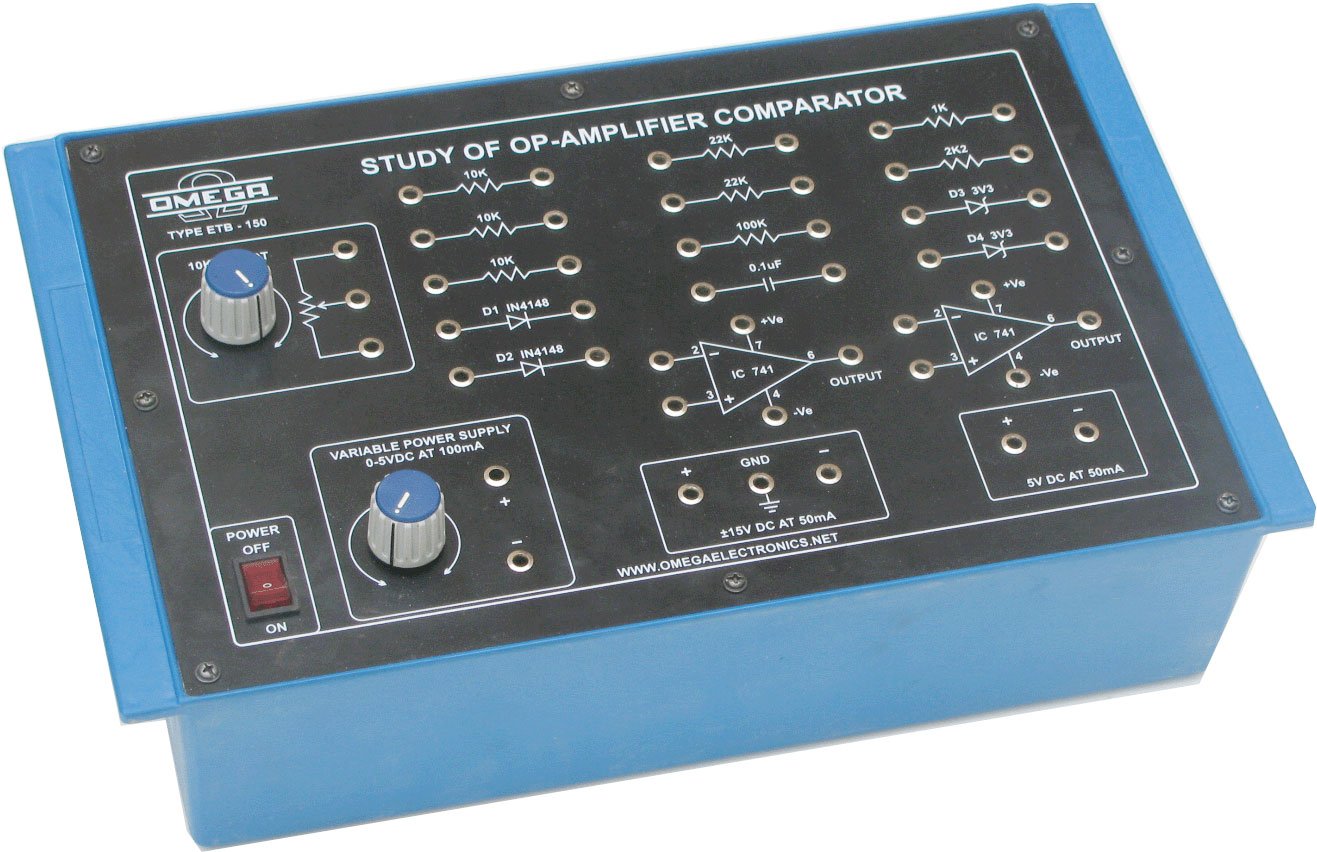

ETB-150
Study of OP-AMP Comparator
Experimental Training Boards (ETB Series)
Technical Specification
01 Study of OP-AMP Cooperator and its Characteristics:
(a) Non-Inverting Cooperator.
(b) Inverting Cooperator.
(c) Fast Precision Voltage Comparator.
(d) Comparator for signals of opposite polarity.
(e) Single ended comparator with Hysteresis and clamped feedback.
(f) Comparator for A.C. Coupled signals.
02 Applications of Comparator :
(a) Zero Crossing Detector.
(b) Schmit Trigger.
(C) Voltage Limiter.
