ETB-181

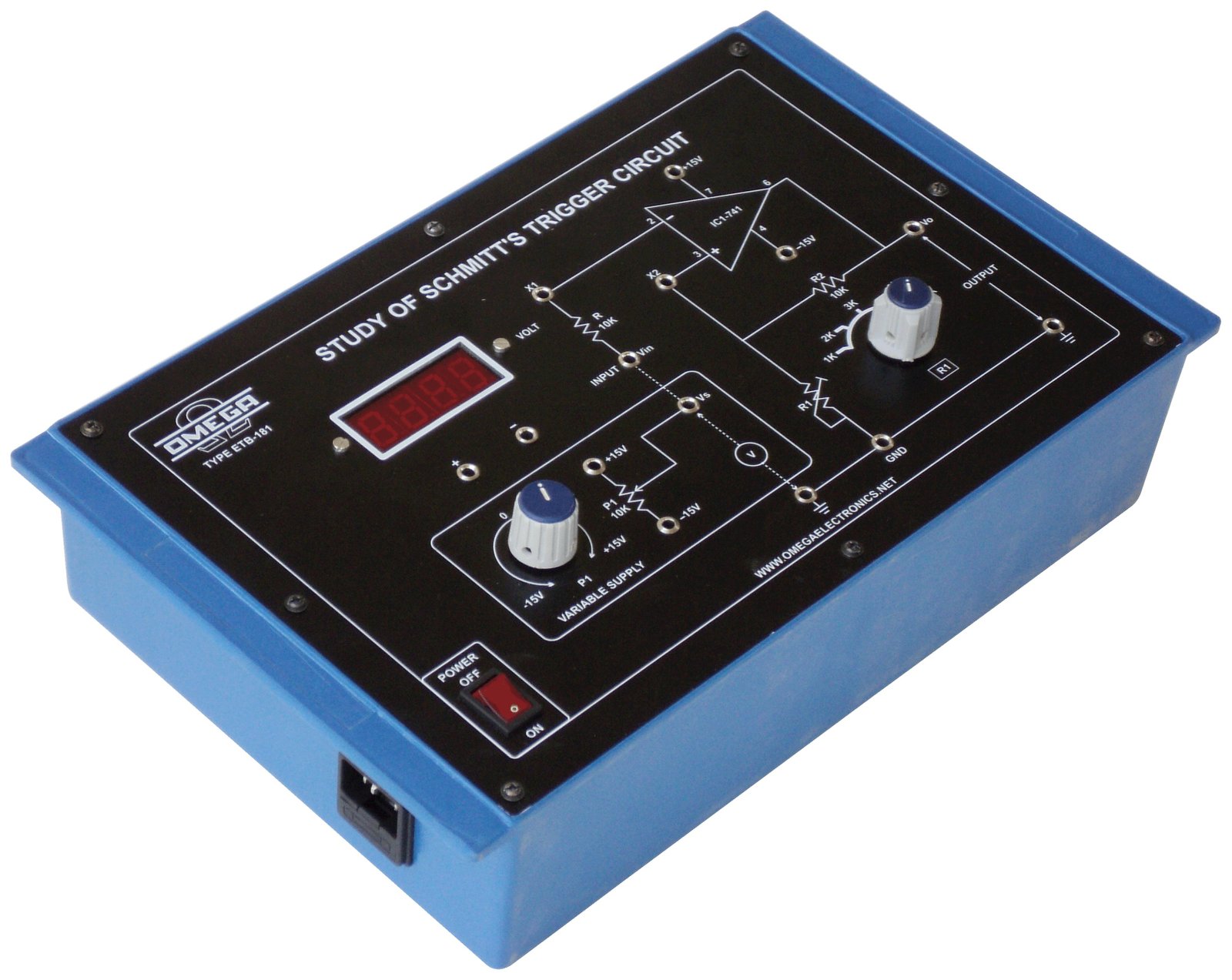

Study of Schmitt's Trigger Circuit (IC-741) with Power Supply and 1 meter
Experimental Training Boards (ETB Series)
Technical Specification
To study Schmitt's Trigger Circuit for the following.
01 Upper threshold voltage
02 Lower threshold voltage
03 Hysteresis
04 Effect of feedback on threshold voltage
